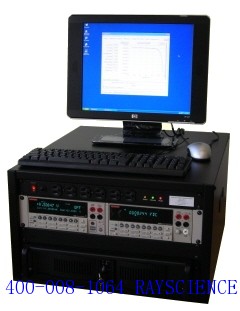

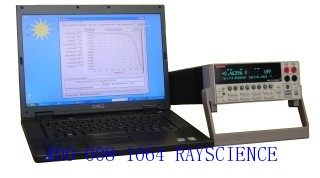

The SCD1 system is suitable for users with existing light sources to collect IV data of batteries or small components.
The system is equipped with a fixture and a data acquisition system.
The system can scan IV curve, calculate the parameters of solar cells, generate printable test reports, and save test data in text files. The scanning range, direction and speed are adjustable.
Basic features of the system:
Designed for use with customer solar simulators and test fixtures
Voltage range ±2.0 V and ±10.0 V
Current range ±0.1 mA to ±1.0 Ampere
Calculate solar cell parameters including open circuit voltage, short circuit current, JSC, Vmax, Imax, maximum power and efficiency
Measuring IV characteristics of light and dark
Test device installation and fixture contact using a 4-wire interface
Computer and IV Measurement Software
Fully Automatic Solar Simulator Shutter Control Instructions
Options
Irradiance monitor to compensate for lamp flicker and drift
Additional current and voltage ranges
Providing measurement results to a database
Installation and Training
Other options available: Different system designs can be customized according to your needs
