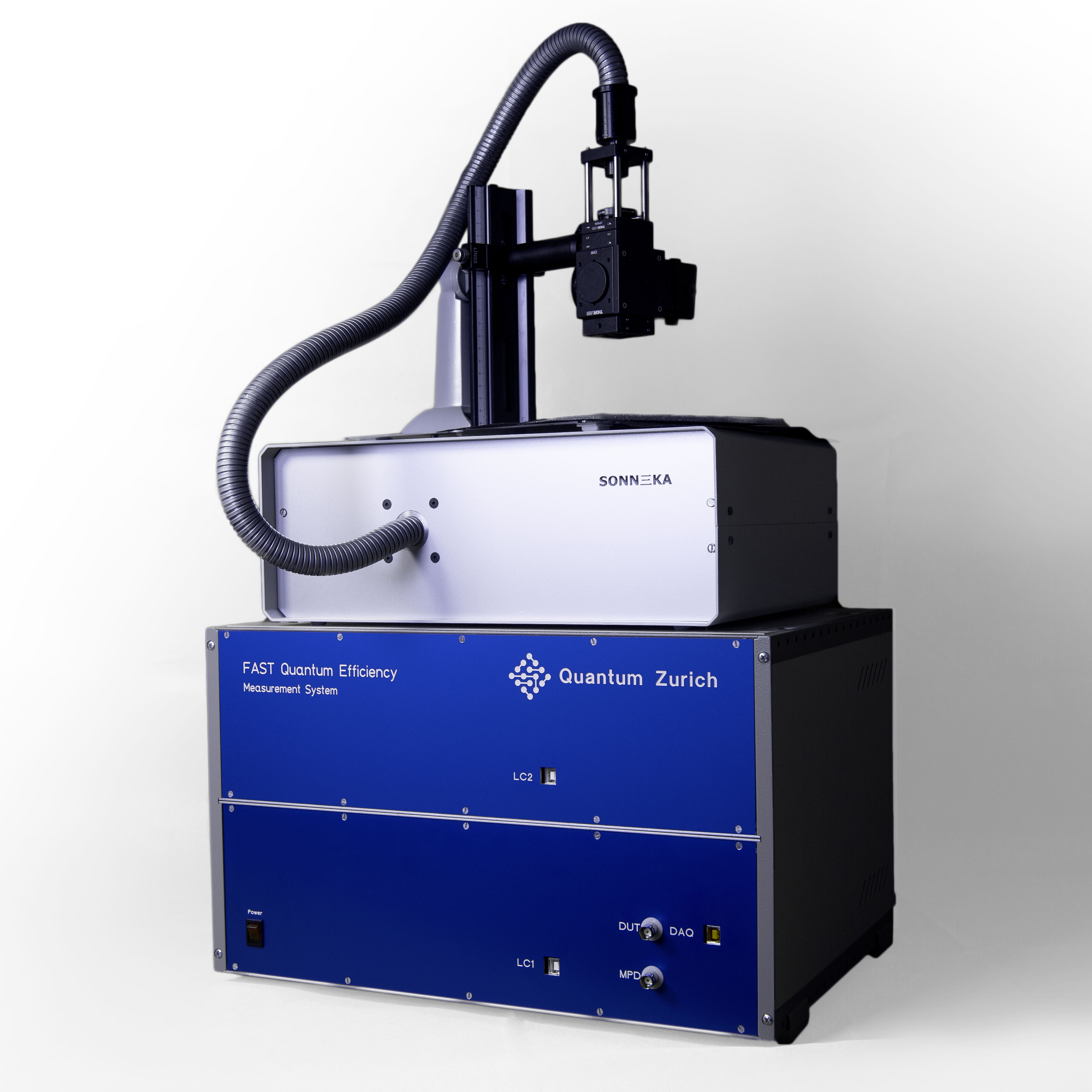

FastEQE High-speed Quantum Efficiency Tester

FastEQE high-speed quantum efficiency tester has an ultra-high measurement speed. A single measurement takes only 8 seconds, while a traditional monochromator system takes nearly 8 minutes to complete the same measurement. Save time Save space Save labor Save cost Measure the quantum efficiency of solar cells 5900% faster than any other system Designed for the manufacture and development of solar cells

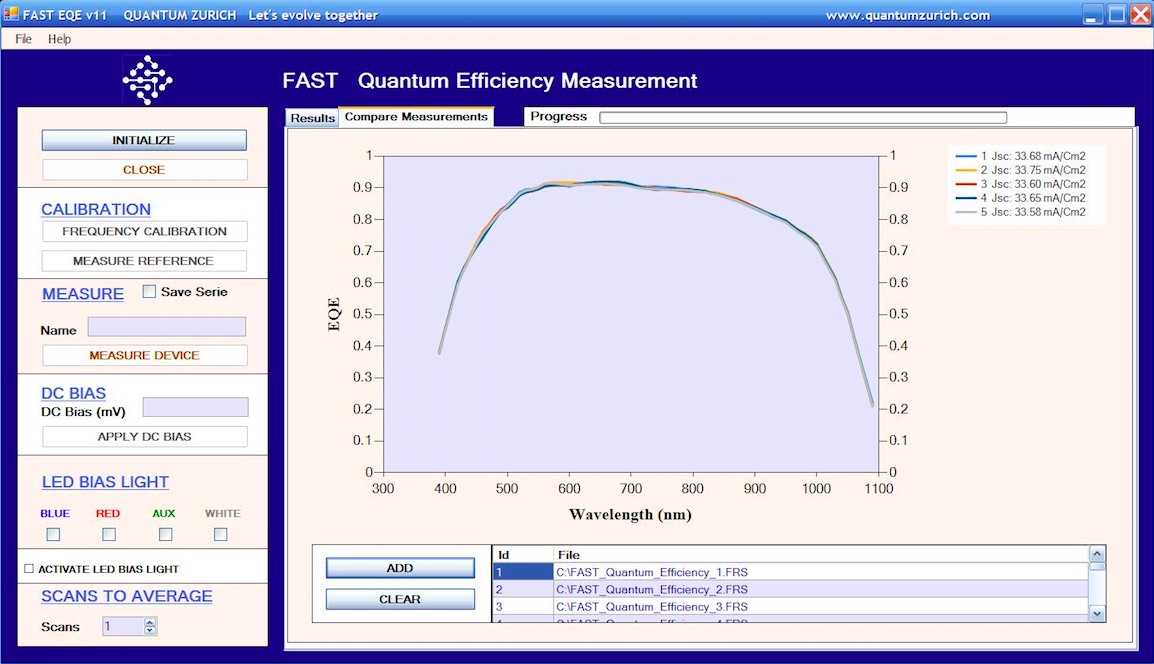

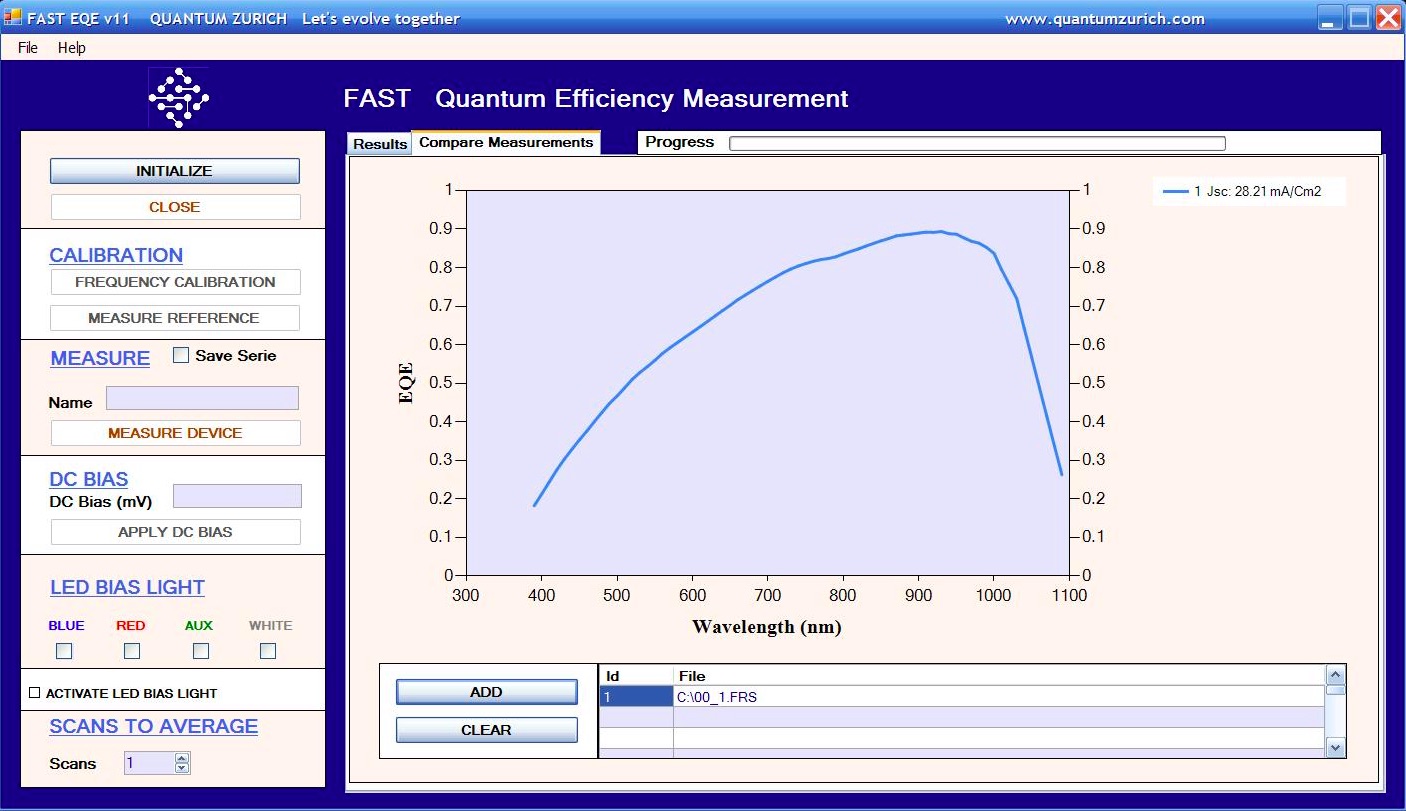

One-click system: Just one click to get started The FastEQE system comes with a graphical user interface. The one-click software allows customers to measure quantum efficiency very quickly. The excellent repeatability allows users to observe small differences in quantum efficiency between different devices. Left: Results of 5 measurements on the same device Flexible and automated design The FastEQE system is equipped with a flexible measurement probe that is easy to implement in a systematic process in horizontal and vertical configurations. It is easy to integrate into other automated measurement and control systems for easy use in daily measurements. It is also small in size and can be quickly installed on the production line

Equipment Parameters Warranty Unlimited downloads and installations of the graphical user interface software, including subsequent free updates. We will provide a 1-year warranty service, including all defects in materials and workmanship, electronic parts and labor. This warranty service also includes worldwide return shipping. During the installation and acceptance, we will provide online measurement time 8s Spectral range 390-1090nm Spot size 4-12mm Photodiode monitor equipped Working distance 5mm Number of wavelengths 40 Light source LED Background light Red light/blue light/white light Bias (+/-) 5000 mV Socket type Male BNC Operating system Windows Operating voltage 220V Dimensions (length, width and height) 45x28x38 cm Weight 46 Kg
