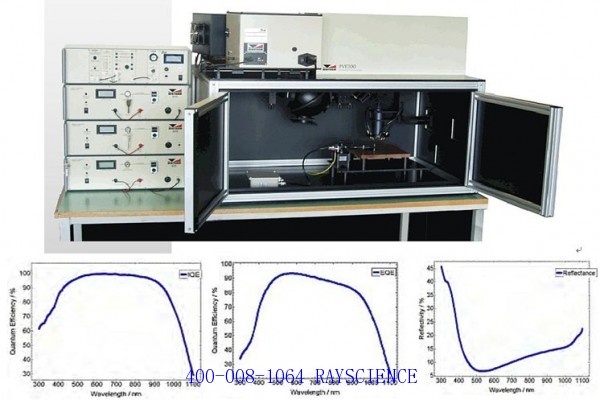

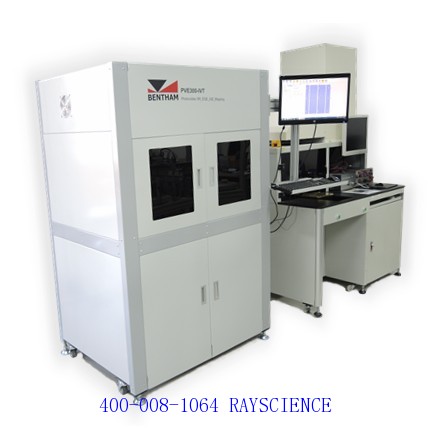

PVE300 Solar Cell Quantum Efficiency Tester

Product Introduction :

PVE300 Test the spectral response of solar cells, or quantum efficiency QE （ Quantum Efficiency ) test, or photoelectric conversion efficiency IPCE (Monochromatic Incident Photon-to-Electron Conversion Efficiency) Testing, etc. With the optional integrated range, it is also possible Measurement Internal quantum efficiency ( IQE ), as well as sampling the reflectance and transmittance. In a broad sense, it is the measurement of the photocurrent characteristics of optoelectronic materials under different wavelengths of light.

based on Bentham The company's professional technology and 25 Years of industry experience, PVE300 It can provide analytical data quickly and accurately and is a well-known international brand that has been tested by the market and widely used.

Features:

■ Applies to all Types of solar cells (including thin film cells), including:

Monocrystalline silicon / Polysilicon / Amorphous Silicon / Gallium Arsenide GaAs / GaInP GaInP / Indium Phosphide InP / germanium Ge / Cadmium Telluride CdTe / Copper Indium Selenide CIS / Copper Indium Gallium Selenide CIGS / Dye sensitization DSSC / Organic solar cells / Polymer solar cells

■ Suitable for solar cells of various structures: single junction Single junction / Multiple knots multi junction / film thin film wait

■ Complete analysis system:

Spectral responsivity / External quantum efficiency / Internal quantum efficiency / Reflectivity test / Transmittance test / Surface uniformity / Short circuit current density

■ It can be achieved Full spectrum sunlight simulation ( 300~2500nm ), the photovoltaic materials tested extend to near-infrared

■ Direct measurement SR and QE

■ Cross flow meter, bias source and built-in detector ensure test accuracy

■ Optical density measurement room

■ 2 0x20cm Temperature controlled vacuum device with accuracy less than 1 Spend

■ Choice of single or multi-channel solar simulator

■ Calibrated Reference Silicon / Germanium detector

■ The entire product software has super compatibility

■ Integrated design makes operation more convenient and the system more stable

■ The system can be upgraded to adopt dual monochromatic reference solar device to meet the highest accuracy measurement requirements.

■ Provide complete 3 Year standard warranty.
Optional features:

■ Optional Internal quantum efficiency ( IQE ) Device

■ automation XY Platform, precise measurement of uniformity

■ Second set of monochromators (capable of measuring the uniformity and characteristics of fluorescent materials)

■ Design and configuration according to customer needs

Technical parameters:
