SOLAR Irradiance Meter

SOLAR Irradiance Meter PMA2100

Solar Light is a world-renowned company specializing in high-precision UV light sources, solar simulators,
Manufacturer of radiometers and detectors. Its main products cover: radiation measurement from ultraviolet to infrared,
Atmospheric monitoring products (handheld sun photometer/ozone meter, biometer), light source products
(Solar simulator - SPF testing, solar cell testing, material testing).
The PMA2100 is a scientific data logging radiometer that can measure the
PMA2100 uses intelligent
Sensor detection and data processing also allow users to quickly add new sensors to measure different

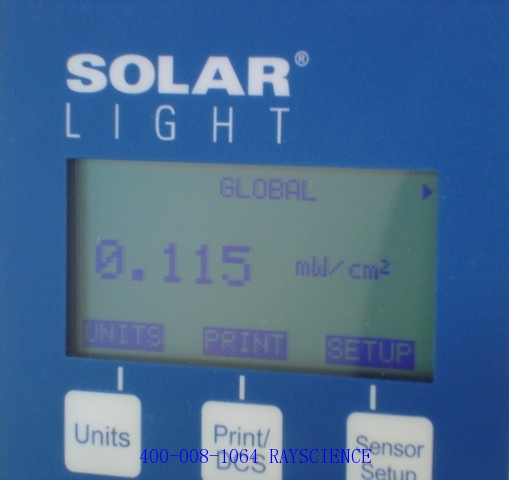

PMA2100 has graphic display, data recording, comprehensive processing and operation.
Unit selection measurement, averaging, minimum and maximum tracking, dose synthesis, threshold alarm setting functions.
All these functions are integrated into this handheld device.

Detector inputs: 2 detector inputs with a maximum of 2 analog signals per input or one
Detector up to 4 signals; mini-D ribbon interface
 Input range: ±0.4V, ±4 V, auto-ranging, within ±0.4V range,
Resolution 15uV
 Dynamic range: >2•10E5
 Accuracy: 0.2% FS full range
 Non-linearity: Maximum 0.02% FS in each range
 Temperature coefficient: 50 ppm/°C max.
 Operating temperature: 0 to 50°C
 Power: 4xAA NiCad or alkaline batteries; external 9-12V AC or DC adapter
 Weight: 17 oz (480 g)
 Dimensions: 4"W x 7.6"H x 1.75"D (10x19.5x4.5 cm)
Compatible with a variety of detector models, many standard detectors are available from stock. Due to the excellent performance of the PMA2100, custom detector connections can be quickly made at a low cost.
Easy to use, once connected to the detector, the PMA2100 automatically sets the parameters to adapt to the new sensor. No need to enter programs and calibration factors. All information related to the detector is compressed and stored in its chip.
Portability. PMA2100 has powerful performance in a palm-sized size. Up to 2 detectors can be connected at the same time. Rechargeable battery can work continuously for 30 hours.
Data Storage. Up to 1024 data records can be stored in the internal memory. Storage can be triggered manually or automatically at user-set intervals (1 minute to 2 hours). A unified recording structure for all detectors simplifies data management.
Traceability. Each data sample is accompanied by a set of related auxiliary information, such as: date, time, detector type and serial number, current unit, user-set scale factor, detector calibration validity date, and instrument status information. This provides convenience for GLP (Good Laboratory Practices) and LIMS (Laboratory Information Management Systems).
Interference immunity. Signal amplification is done inside a metal box inside the detector. The signal is connected to the PMA2100 via an EMI and ESD-proof cable.

Application areas: Photovoltaic solar energy research and development and production

Device Features: The PMA2100 is a scientific data logging radiometer that can measure UVA, UVB, UVC, Visible, and IR light with over 35 different detectors. The PMA2100 uses smart sensors for detection and data processing, and allows users to quickly add new sensors to measure different types of light. The PMA2100 has graphic display, data logging, comprehensive processing operations, unit selection measurement, average, minimum, maximum tracking, dose integration, and alarm settings. All of these functions are integrated into the PMA2100 device.

n PMA2100 irradiance meter includes:

Rechargeable battery/Universal charger 85-240VAC

Data logging includes PMA software and PC connection cable

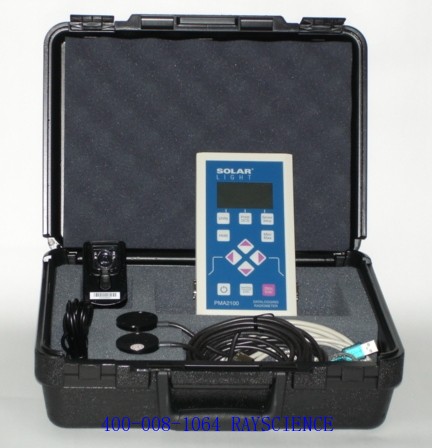

Sturdy packaging box with built-in instrument and 2 sensors

NIST traceable instrument rating certificate

n PMA2106 UVB sensor: 280~320nm

Used for UV pretreatment test UV irradiance calibration

n PMA2107 UVA+UVB sensor: 280~400nm

Used for UV pretreatment test UV irradiance calibration

n Bandwidth filter: cut-off wavelength 385nm

This filter can be installed on the PMA2107 or PMA2110 sensor and implements the IEC 61215-2005 standard

n PMA2145 Class I pyranometer: 310~2800nm
