Photoluminescence (PL) PL2011 is a flexible R&D and characterization system provided by Sunmiao Photonics R&D. The system has a flexible manual loading sample platform and can be used for raw wafers, partial or full block processing of cells and selective inspection of bulk or partial component units.

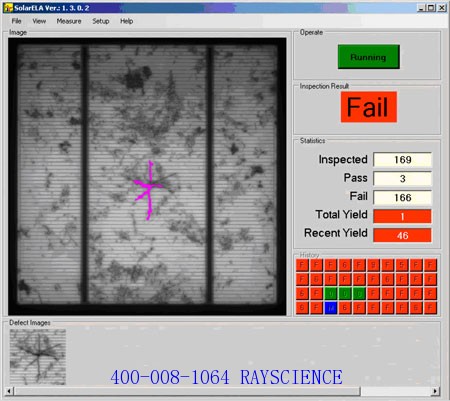

The solar cell or module is excited by an intensive light source. No electrical connections to the solar cell are necessary. The invisible photoluminescence radiation emitted by the cell or module is detected by a highly sensitive greateyes Camera. The provided software allows to display and manipulate the images.
LumiSolarCell System
► Image mono Si & poly-Si Solar Cells
► Innovative HighPower LED Excitation
► No Laser required !
► Safe and Reliable System
► Combination with Electroluminescence possible
Photoluminescence (PL)
Photoluminescence (PL) It can be used in all steps of solar cell manufacturing process, and PL
It is contactless
Photoluminescence (PL) PL2010 It is a flexible R&D and characterization system provided by Shunmiao Optoelectronics. The system features a flexible manual loading sample platform and can be used for as-cut wafers, partial or full cell processing. and Selectively detect Blocks or partial components .
Inspection and measurement capabilities include:
Blocky objects

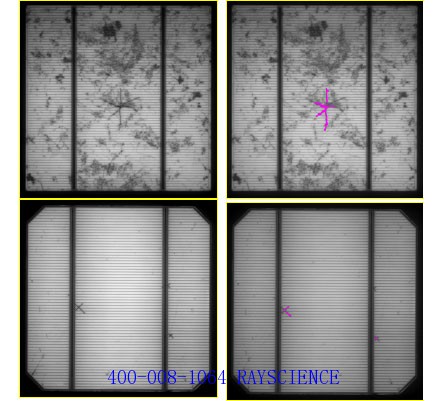

a) High-resolution photoluminescence images
As-cut wafer
a) High-resolution photoluminescence images
Passivation layer wafer
a) high resolution Photoluminescence image
b) High resolution calibrated to minority carrier lifetime units Photoluminescence image
c) Injection of correlated minority carrier lifetimes using quasi-steady-state PC techniques
Finished battery
a) high resolution Photoluminescence image
b) High-resolution electroluminescence images
c) High-resolution series resistance image
