Carbon and oxygen content analyzer Nicolet 6700 tester
Crystal bond and component content analysis
Main accessories:

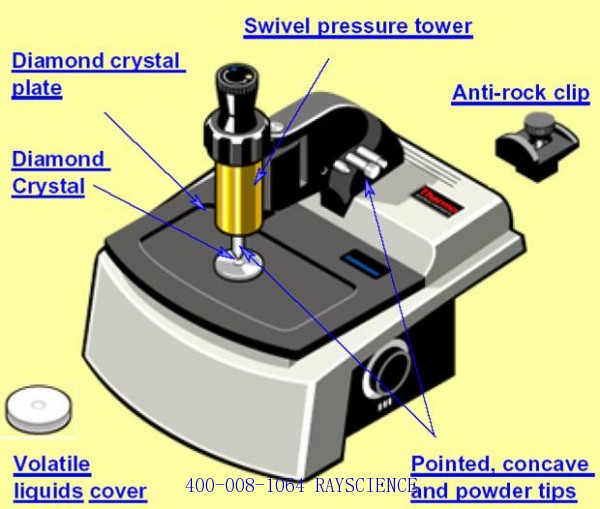

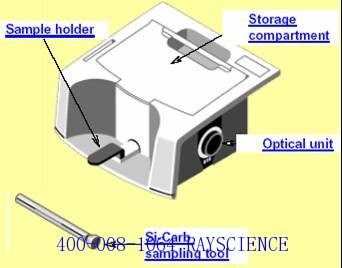

Transmission accessories, mirror reflection accessories, ATR attenuated total reflection accessories
Main technical indicators:
Spectral resolution: better than 0.09 cm-1 IR spectrum range can be extended to cover far infrared / mid-infrared / near infrared / visible spectrum range Signal-to-noise ratio: 50000:1 (peak-to-peak) ASTM linearity: deviation from 0.0 % T is less than 0.07 % T
Carbon and oxygen content analyzer Nicolet 6700 tester Detailed description:

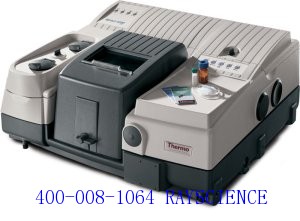

The Nicolet 6700 Fourier Transform Infrared Spectrometer is an intelligent, advanced research-grade infrared spectrometer that combines more than 30 years of experience in the production of Fourier Transform Infrared Spectrometers with the latest optics, electronics, materials science and artificial intelligence technologies. All of its details reflect the design purpose: excellent performance, powerful functions, unlimited upgrades, simple sample preparation, and intelligent operation.
Nicolet FT-IR spectrometers are used in conjunction with the Nicolet Continuµm XL infrared microscope to greatly improve laboratory work efficiency.
Technical description: Spectral resolution: better than 0.09 cm-1 Infrared spectrum range can be extended to cover far infrared/mid-infrared/near infrared/visible spectrum range Signal-to-noise ratio: 50000:1 (peak-to-peak) ASTM linearity: Deviation from 0.0% T is less than 0.07% T Wear-free electromagnetic drive interferometer, digital continuous dynamic adjustment (DSP), speed up to 130,000 times per second, to ensure ultra-high stability of instantaneous and long-term detection Highly integrated host button operation to improve experimental efficiency Online function: Five external light paths, can be used with TGA, microscope, GC, LC, Raman Components can be added as needed to achieve the following functions and experiments: step scanning, nanosecond time-resolved spectroscopy, phase-modulated photoacoustic spectroscopy, luminescence spectroscopy, simultaneous synchronous multi-dimensional modulation spectroscopy, sample modulation spectroscopy, etc.
Product use:
Used for carbon and oxygen content analysis of solar cell silicon wafers and cells during the photovoltaic industry production process
