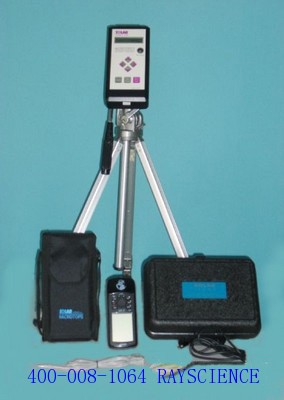

MICROTOPS II is a 5-channel handheld sunphotometer for precise measurement of aerosol optical depth. It measures and stores 5 discrete wavelengths of direct solar radiation. MICROTOPS has the same accuracy as other larger and more expensive instruments. The optional GPS receiver facilitates field measurements. The user can select 5 of the 8 WMO wavelength filters or specify up to 5 custom wavelengths.
Product Introduction: MICROTOPS II Is a 5-channel aerosol optical thickness precision measurement Handheld sun light meter . Direct solar radiation can be measured and stored at 5 non-continuous wavelengths. MICROTOPS has the same accuracy as other large and expensive instruments. The optional GPS receiver provides convenience for field measurements. The user can select 5 from 8 WMO wavelength filters or specify up to 5 custom wavelengths. MICROTOPS II sunphotometer can measure aerosol optical depth and solar direct radiation at all selected wavelengths. The wavelengths of 936+870+1020nm, 936+870 and 936+1020 can be used to measure water vapor column.
Technical parameters:
Optical Channel
340 ± 0.3 nm, 2 nm FWHM
380 ± 0.4 nm, 4 nm FWHM
440 ± 1.5 nm, 10 nm FWHM
500 ± 1.5 nm, 10 nm FWHM
675 ± 1.5 nm, 10 nm FWHM
870 ± 1.5 nm, 10 nm FWHM
936 ± 1.5 nm, 10 nm FWHM
1020 ± 1.5 nm, 10 nm FWHM
Stray light
340nm: 1E-6 λ<650nm; 1E-5 λ<1.0μm
380nm: 1E-6 λ<650nm; 1E-5 λ<1.0μm
440nm: 1E-5 λ<1.0μm
500nm: 1E-6 λ<1.1μm; 1E-5 λ<1.2μm
675nm: 1E-6 λ<1.1μm; 1E-5 λ<1.2μm
870nm: 1E-6 λ<1.1μm; 1E-5 λ<1.2μm
936nm: 1E-6 λ<1.1μm; 1E-5 λ<1.2μm
1020nm: 1E-6 λ<1.1nm; 1E-5 λ<1.2μm
Dynamic Range
>300,000
Resolution
0.1W/m²
Field of view
2.5°
Accuracy
1-2%
Maximum nonlinearity
0.002% FS
Operating Environment
0 to 50°C, no precipitation
Computer interface
RS-232C
power supply
4xAA alkaline batteries
weight
21 oz (600 grams)
size
4"W x 8"H x 1.7"D (10x20x4.3 cm)
Key Features:
High Precision: The highest standard filters are implanted inside to ensure accurate and stable optical alignment. Low noise electronic devices and 20-bit A/D converters ensure high linearity, high resolution, and high dynamic range.

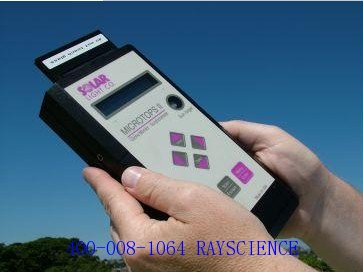

Easy to use: No computer knowledge is required to take measurements. Simply point the meter at the sun, align the crosshairs with the sun image, and press a button. The measurement is completed in a few seconds and the result is stored in memory.
Portability: Measurements can be performed with just a small handheld device, no computer required.
Instantaneous results: Ozone and water vapor calculation algorithms are programmed into MICROTOPS II and the final stored results can be conveniently displayed on the LCD display.
Non-volatile memory: MICROTOPS II collects raw data and stores calculation results in memory. Each data point is labeled with time, date, sun angle, altitude, location coordinates, atmospheric pressure and temperature.
Low cost: Due to the use of the latest technology, it has a more competitive price compared to other products, but its accuracy and other features are outstanding.
Computer Interface: The acquired data can be transferred to a PC via a serial interface (RS232). MICROTOPS Organizer is a Windows-based software for automatic data retrieval and archiving.
