Solar Simulators for Photovoltaic Testing

Solar Simulators for Photovoltaic Testing
The light source meets the ASTM (American Society for Testing and Materials) laboratory light source standards, "A" class spectral output.

Key Features:

All products are factory calibrated to NIST traceable standards.
+/- 5% uniformity of collimated light
Class "A" spectral output

application:

 Semiconductor testing
 Photovoltaic testing
 Material aging research

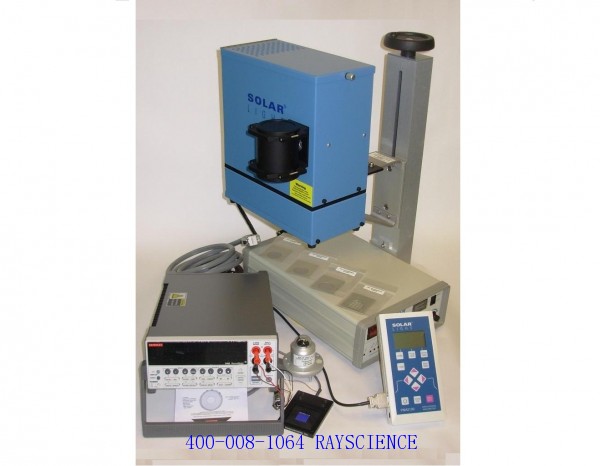

The 16S is a ready-to-use photovoltaic cell test light source.
Spectrum "A" class spectral output (AM1.5). 16S-002 is equipped with a vertical beam adapter to
The beam changes direction and shines vertically downward. Typical spot size is 2.25 inches, 1 sun output
The spot size can be customized by the user.
By adjusting the knob on the power supply, the output light intensity can be adjusted from 80% to 100%.
Adjust the light intensity from 10% to 100%.
The 16S accurately reproduces the full solar spectrum. It complies with the latest ASTM illuminant standards and many ASTM standards requiring G151 and G155.
The standard can be achieved by 16S-002. 16S-002 can test solar cells according to ASTM standards E948-95 and G173.
The main features are as follows:
• 150/300 watt Xenon arc lamp
• 150W XPS150 Power Supply / 300W XPS300 Power Supply
• AM filter (certified with NIST traceable light source, compliant with ASTM test
Room light source standard)
• Built-in igniter – for ignition of xenon arc lamps
• High performance optics (for collimation and uniformity control)
• New “A” grade AM1.5 filter can achieve 3cm spot
Air mass 1.5 = 952 w/m2
16S 150/300 Air mass 1.5 Energy output diagram (circular spot output)
Output spot size/shape
2 cm round
(Horizontal or vertical output)
3 cm round
(Horizontal or vertical output)
6 cm round
(Horizontal or vertical output)
Output area 3.142 cm2 7.068 cm2 28.27 cm2
150 watt System strength 4000 w/m2 2000 w/m2 500 w/m2
300 watt System Strength N/A 4000 w/m2 1000 w/m2
NOTE: Vertical output is available as an option on 2cm and 3cm models and is not included in the standard 2cm and 3cm model configurations. PMA2144
The daylight meter will saturate above 4000 w/m2 and requires the use of an attenuating filter.
