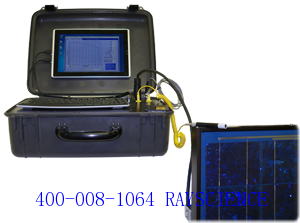

Portable tester that is easy to use in the field and can measure accurately and quickly.
Basic features of the system:
Mass < 14 kg
Battery powered
Provide raw data
Provides light and temperature correction data
Reports short circuit current, open circuit voltage, import and export, photoelectric performance, PMP, FF, efficiency, estimated series resistance
Reference battery input
Thermocouple input
Thermal resistor Pt100 input
Additional input voltage
Software runs on tablet with bluetooth keyboard
Easy navigation, compatible with keyboard, mouse and touch navigation
High precision
The PIV line of the photovoltaic module system is designed for applications where high precision and high accuracy measurements are very important. It can quickly identify those panels that have failed and those that are likely to fail soon.
Enables environmental monitoring before, during and after scans with multiple additional voltage, current and temperature inputs. Measure temperature, wind and pyranometer data before and after each scan. During an IV scan, irradiance measurements are made through up to 5 sensors with system syncing of all irradiance data within 10 ns to every IV pair of data.
Flexible configuration
Portable IV measurement systems can be configured for your application. Please contact Photovoltaic Measurement to discuss the best configuration for your measurements.
The following table shows two example configurations.
