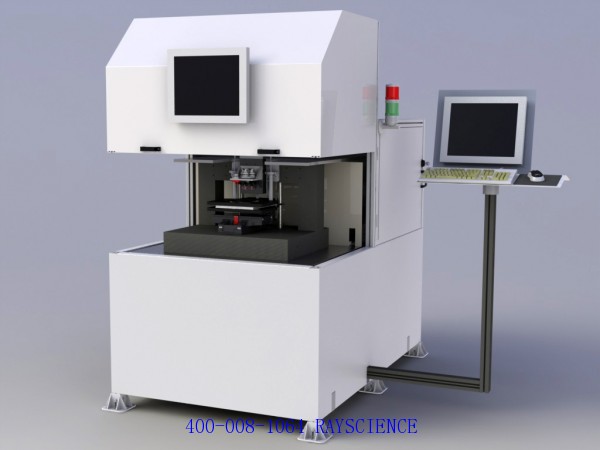

Industrial-grade femtosecond laser micromachining system

Industrial-grade femtosecond laser micromachining system

This set Femtosecond laser micromachining system Professionally developed for industrial micro-machining research and production Ultrafast laser micro-addition Industrial system, can be used for Femtosecond laser drilling, Femtosecond laser etching, Femtosecond laser multiphoton polymerization , with excellent reliability and ultra-high processing speed.

This set Femtosecond laser micromachining system Using advanced and mature Femtosecond laser and Femtosecond laser amplification device. Femtosecond laser Because the laser pulse is ultra-short, it provides an unparalleled laser power density of common lasers, and its processing effect far exceeds that of nanosecond and picosecond lasers. The material can be vaporized instantly wherever the beam reaches. Because the laser pulse is ultra-short, the laser energy cannot diffuse into the surrounding materials in such a short time, so the processing effect is first-class.
This set Femtosecond laser micromachining system, ultrafast laser micromachining System, using up to 10W of Yb:KGW (1030nm) Femtosecond laser As a laser light source, the repetition frequency is adjustable in the range of 1-1000KHz, combined with the first-class precision scanning galvanometer, it provides ultra-high micro-machining speed.
Resolution down to the nanometer scale Equipped with Arotech's high-resolution positioning platform, synchronized laser beam scanning galvanometer and pulse picker, it provides all-round high-precision control in space, time and energy. It provides ultra-high-difficulty processing capabilities and achieves sub-micron precision resolution and repeatability.
Mechanical View The system is equipped with a machine vision system that uses a high-resolution camera to monitor the machining process.

Femtosecond laser source
This set Femtosecond laser micromachining system Uses a special design for micromachining Femtosecond laser , which has many advantages over commercial femtosecond lasers available on the market. Femtosecond Laser Amplifier With higher stability and reliability, reaching the standards for industrial use, the femtosecond laser amplifier has shorter pulses (oscillator <80fs, amplifier <280fs), the femtosecond laser has a higher average power (oscillator up to 2W, amplifier 6W), and the laser repetition frequency is adjustable. The computer monitors and controls the laser.

Ultra-high processing speed: up to 350000 Pixel/ Minimum heat affected zone in femtosecond micromachining mode

Working area up to: 150x150mm

Controlling precision laser beams with high-performance galvanometers

The number of laser pulses can be controlled ( 1-350KHz) fly

Femtosecond laser micromachining system Technology involved

Femtosecond laser drilling, femtosecond laser cutting, femtosecond laser punching, femtosecond laser hole drilling;
Femtosecond laser ablation, femtosecond laser etching, femtosecond laser engraving;
2.5D Milling, custom model marking,
Surface micro-nano structure price
Changing the refractive index of materials, femtosecond laser material modification
Femtosecond laser three-dimensional multiphoton polymerization;
Optical micromanipulation...

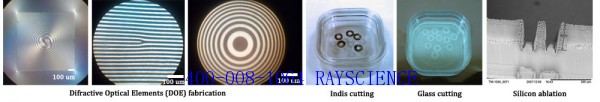

application
MEMS Manufacturing Mask Making and Repair Microchip repair Fuel cell material manufacturing LIBWE, Medical Applications Light-induced diffusion Micro-optics Photonic Crystals Diffractive optical element manufacturing
Fabrication of waveguides and microlenses
