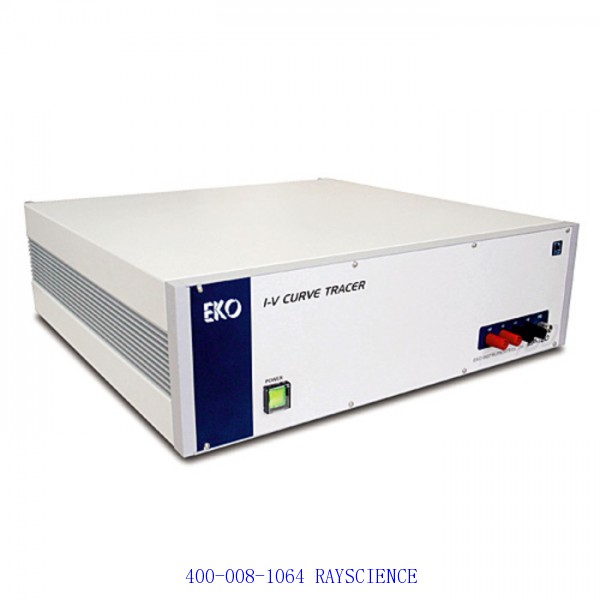

MP-170 is an advanced instrument for measuring IV curves to evaluate the performance of solar cell modules and arrays. The measurement range can be from 10W photovoltaic modules to 10kW photovoltaic power generation systems. MP-170 has a voltage measurement range from 10V to 1000V and is suitable for high voltage PV arrays.
■ IV curve measurement ■ Applicable to 10W PV modules to 10kW PV array systems ● Measuring range up to 1000V ● Applicable to 10W PV modules to 10kW PV array systems ● Built-in fault diagnosis function ● The solar radiance sensor unit can be detached for long-distance measurement. ● LCD display, built-in keyboard and diagnostic functions support convenient stand-alone operation ● Additional analysis software package, can be operated using PC The MP-170 is an advanced instrument for measuring IV curves to evaluate the performance of solar cell modules and array systems. The measurement range can range from 10W PV modules to 10kW PV systems. The MP-170 can measure voltages up to 1000V, making it suitable for high voltage solar cell systems. The MP-170 is a cost-effective, compact, portable instrument that includes a solar radiance detector, two temperature sensors, and fault diagnosis capabilities. The detection unit is equipped with a silicon detector pyranometer and comes with a calibration certificate. Solar irradiance and temperature can be measured remotely. With its ability to display IV derivative and magnification, the MP-170 is very effective for failure diagnosis of solar cell arrays. With built-in keyboard and LCD display, and self-diagnostic function, the MP-170 can be operated stand-alone without relying on a PC. IV curves and other data such as Voc, Isc, Pm, STC conversion, data failure analysis, etc., can be displayed on the built-in LCD, making the MP-170 very convenient for online performance measurement. The MP-170 can store up to 300 IV curve data, including the corresponding solar luminescence and temperature data. MP-170 can be operated via PC. The enhanced measurement/analysis software package can run on Windows 2000/XP and other systems, and can save and analyze data, output images, and automatically and continuously measure.
