Photovoltaic panel inspection microscope can observe dislocations, scratches, broken edges, etc. that are difficult to observe with the naked eye; it can also analyze the impurities and residue components of silicon wafers. Impurities include: particles, organic impurities, inorganic impurities, metal ions, silicon powder dust, etc., which cause the silicon wafers after grinding to be prone to change, blue, black, etc., making the grinding unqualified. It is one of the indispensable inspection instruments in the production process of solar cell silicon wafers. CGM-600E large platform bright and dark field silicon wafer inspection microscope is suitable for microscopic observation of solar cell silicon wafers. This instrument is equipped with a stage with a large moving range, an epi-illuminator, a long working distance flat-field achromatic objective lens, and a large field of view eyepiece. The image is clear and the contrast is good. It is also equipped with a polarizing device and a high-pixel digital camera. This instrument is equipped with a dark field objective lens, which makes the image clearer when observing silicon wafers. It is an ideal instrument for detecting the microscopic morphology distribution of the "pyramid" of solar cell silicon wafers and defect analysis of silicon wafers.
1. The main uses and features of photovoltaic panel inspection microscope instruments SDMM-4000C series research photovoltaic panel inspection microscope adopts infinite optical design, equipped with a stage with a large moving range, epi-illuminator, plan achromatic objective lens, wide field eyepiece, clear image, good contrast, and equipped with dark field and polarizing device, it is an ideal instrument for silicon wafer inspection, solar substrate inspection and photovoltaic panel inspection research. It is suitable for use in schools, scientific research, factories and other departments. SDMM-4000C research photovoltaic panel inspection microscope is a high-tech product developed by perfectly combining the elite optical microscope technology, advanced photoelectric conversion technology, and cutting-edge computer imaging technology. It can observe metallographic images manually, and can also observe metallographic images on the computer in a timely manner and capture them at any time, so as to analyze and grade the metallographic maps, etc., and can also save or print high-pixel metallographic photos.
2. Main technical indicators of photovoltaic panel inspection microscope Metallographic microscope components and specifications Eyepiece wide field of view WF10X (Φ22mm) WF16X(Φ16mm) Flat field scale 10X (0.10mm/division value) Objective lens Magnification/Numerical aperture Long working distance plan achromatic PL4X/0.1 infinity corrected aberration Ultra-long working distance plan achromatic PLL10X/0.25 infinity corrected aberration PLL20X/0.40 Infinity Aberration Correction PLL40X/0.65 Infinity Aberration Correction PL50X/0.70 Infinity Aberration Corrected PL80X/0.80 Infinity Aberration Corrected Dark field objective PL10X/0.5 infinity aberration corrected PL40X/0.65 Infinity Aberration Corrected Eyepiece tube trinocular, tilted 30 degrees, including polarizer The instrument body has coarse and fine adjustment hand wheels, and the fine adjustment value is 0.002MM (base and bracket) The polarized dark field device can insert polarizing plates and vertical lighting devices, and can perform general metallographic analysis, particle analysis and testing, as well as analysis and observation of opaque objects. In the reflected light path, bright field, dark field and polarized light can be quickly switched. Stage glass plate, size: 274 X274mm, with fast moving device, moving range size: 200 X 200mm Focusing mechanism: Coaxial coarse and fine focusing mechanism, focusing range 15mm, fine adjustment value 2μm Lighting system: 12V/50W, halogen lamp, adjustable brightness Filter set: blue, yellow, green, frosted, neutral color filters Converter: ball internal positioning, internal bending, five-hole conversion
3. Photovoltaic panel inspection microscope instrument main body decomposition The DMM-800 is equipped with a prismatic binocular tube with diopter compensation. The diopter of the left and right eyepieces can be adjusted. This design allows the objective lens to remain in focus when the pupil distance is adjusted, and only a minimum amount of focusing is required even when changing objectives of different magnifications. The eyepiece ring is made of rubber for more comfortable observation. The high-quality five-hole converter has a mechanical stop inside. This design makes rotation smoother and enhances durability. At the same time, the converter has a ridge around the ring, which makes rotation easier without touching the objective lens. Binocular tube Quintuple converter
X and Y axis parallel movement, X axis 200mm, Y axis 200mm, high-precision translation design ensures horizontal movement of the observation sample, and the movement accuracy is 0.1mm.
Stage adjustment hand wheel The coaxial coarse and fine focusing hand wheel is located at the lower back of the stage, and it is close to the stage moving handle, so the operator does not need to twist his shoulders and can maintain a natural posture to operate. The multifunctional trinocular head design allows the trinocular head to be connected to both a color camera and a digital camera, allowing traditional human eye observation as well as computer observation or digital camera photography.
Coaxial coarse and fine focusing hand wheel Trinocular head This mechanical stage, firmly mounted on the mainframe, is a built-in double-layer mechanism that allows smooth movement in the XY direction. Because this mechanism is built-in, rather than attached, the X-guide rail does not protrude from the stage surface, which increases the space above the stage, making specimen manipulation more convenient and quick, while also making the stage move more smoothly and precisely in the X-axis. The smooth surface of the stage allows the slide to move more smoothly and freely.
Double-layer mechanical stage

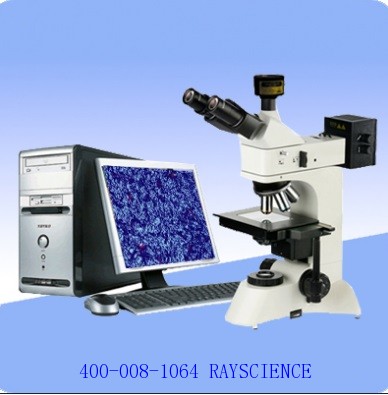

4. Composition of Photovoltaic Panel Inspection Microscope System 1. Metallographic microscope SDMM-4000C 2. Computer adapter glasses 3. Color camera (CCD) 4. A/D converter (color image acquisition equipment) 5. Computer (optional)
