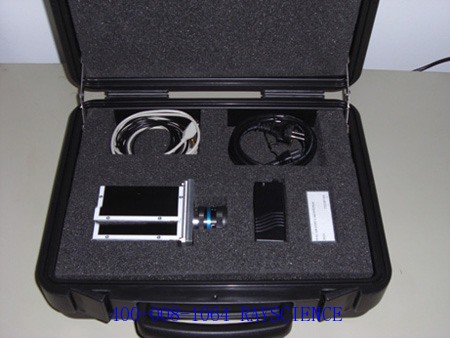

Product Introduction Origin: Germany The portable solar cell defect detector uses the principle of electroluminescence to detect micro cracks and failed cells. This device can detect individual cells and medium-sized components in detail, greatly facilitating the detection and maintenance of installed solar cell component system failures. It is simple to operate and easy to transport. The system consists of a highly sensitive CCD-Camera and a shipping package with accessories.
Technical Parameters * Resolution: 1024 x 1024 Pixel *Sensitivity: 80% @ 750nm, 40% @ 900nm, 15% @ 1000nm *Pixel size: 13μm x 13μm *Exposure time: 0.3 sec - 60 sec (depending on the type and size of the cell and battery module) *Testable substrates: mono-Si, poly-Si, a-Si, micro-Si, CIS, CIGS, CdTe *Measurable specifications: 50mm x 50mm up to 1600mm x 1600mm *Power supply: Standard ~230V, 50/60 Hz *System requirements: Laptop or PC with WinXP or Vista, USB2.0 Interface *Device size and weight: 460mm x 370mm x 170mm, 12kg
