RAYSCIENCE's MicroPhase-DCM200 digital confocal microscope can efficiently observe and measure special and academically significant sensitive surfaces in various fields such as industrial production and research, medicine, archeology and criminal investigation.
A precision digital confocal module is connected to the optical microscope you use. It collects and measures the surface microscopic morphology of your sample at a high-speed longitudinal scanning rate of 30 frames per second, thereby obtaining an accurate, three-dimensional, high-resolution black and white or true color surface morphology image.

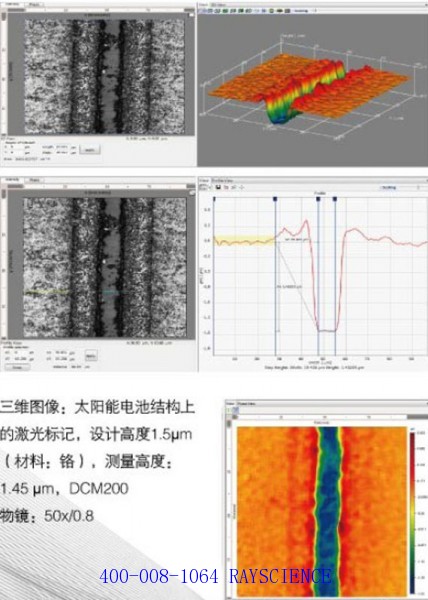

The easy-to-use software provides many analysis options, including roughness and waviness measurement, step height evaluation and particle analysis, etc. User-defined test reports can combine images and various measurement results, which will greatly expand your research space and increase your work efficiency. ♦High-precision 3D measurement ♦Using non-contact method, it can quickly and accurately measure the height of microscopic steps in three dimensions ♦Reliable quality analysis ♦ Upgrade 2D images to 3D images
Roughness measurement range (Ra μm): >0.01 to 3
Measuring points: 1.3M (1280x1024 pixel array)
Measuring time (seconds): <10
Microscope interface: Video port (compatible with C-type interface)
Dimensions (LxWxH) (mm): 120x74x173
Microscope Objectives
5x
10x
20x
50x
Working distance*, mm
15.8
9.3
2.1
0.58
Numerical Aperture (NA)
0.13
0.25
0.5
0.8
Measuring area (X, Y) mm2
1.3x1.0
0.66x0.53
0.33x0.27
0.13x0.10
Axial (Z axis) maximum range, um
1000
250
62.5
10
Axial (Z-axis) resolution, um
0.35
0.09
0.04
0.011
Pixel
1.3M (1280X1024 pixel array)
Measuring time, seconds
＜30
Microscope interface
Video port (Type-C compatible)
Dimensions (xWxH), mm
120x74x173
weight
2.5Kg
Serial Port
USB2.0
Image data processing and measurement
Calibration: objective, gain, image registration 2D: distance, area, area ratio, circle radius of equivalent area, circumference, segmentation, binary shape, smoothness, median, classification, gamma correction, sharpening, etc. Three-dimensional: height, roughness (profile/surface, calculated according to ISO4278), volume, surface area, etc. Others: superposition, splicing (joining), and reporting functions.
